PV system package with the modules and electrical components listed below. The bill of materials defines the included hardware; project layout, installation and commissioning are agreed separately.
System specification
| Package reference | 2459237 |
|---|---|
| Listed PV array rating | 20.680 kWp |
| Roof type | pitched roof |
| Roof covering | trapezoidal metal sheet |
| Nominal size class | 20 kWp |
| PV modules | JA Solar |
| Battery storage | BYD |
| Inverter | Kostal |

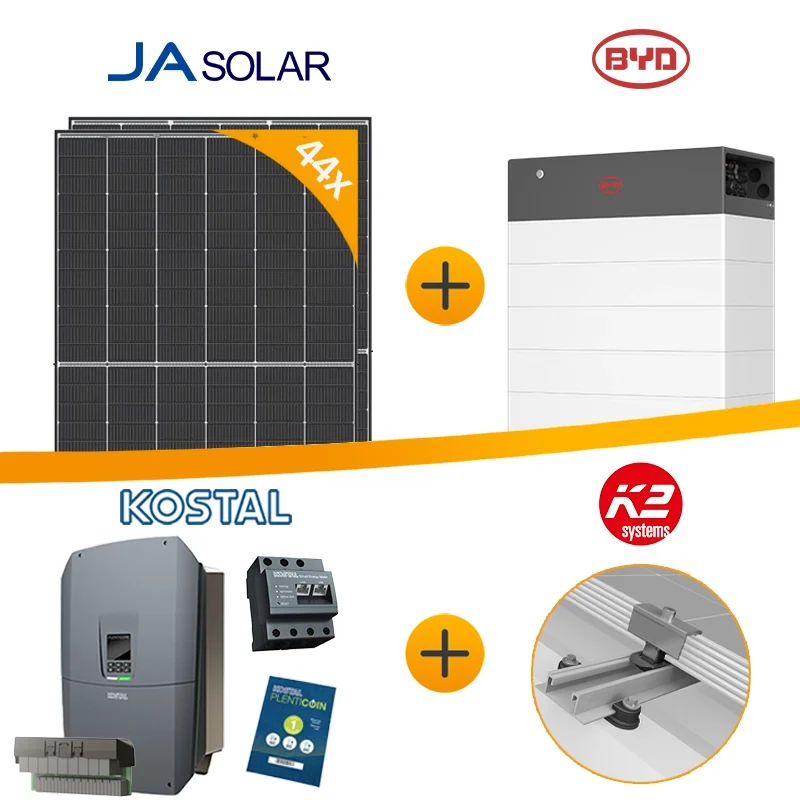

Included components
| Quantity | Component |
|---|---|

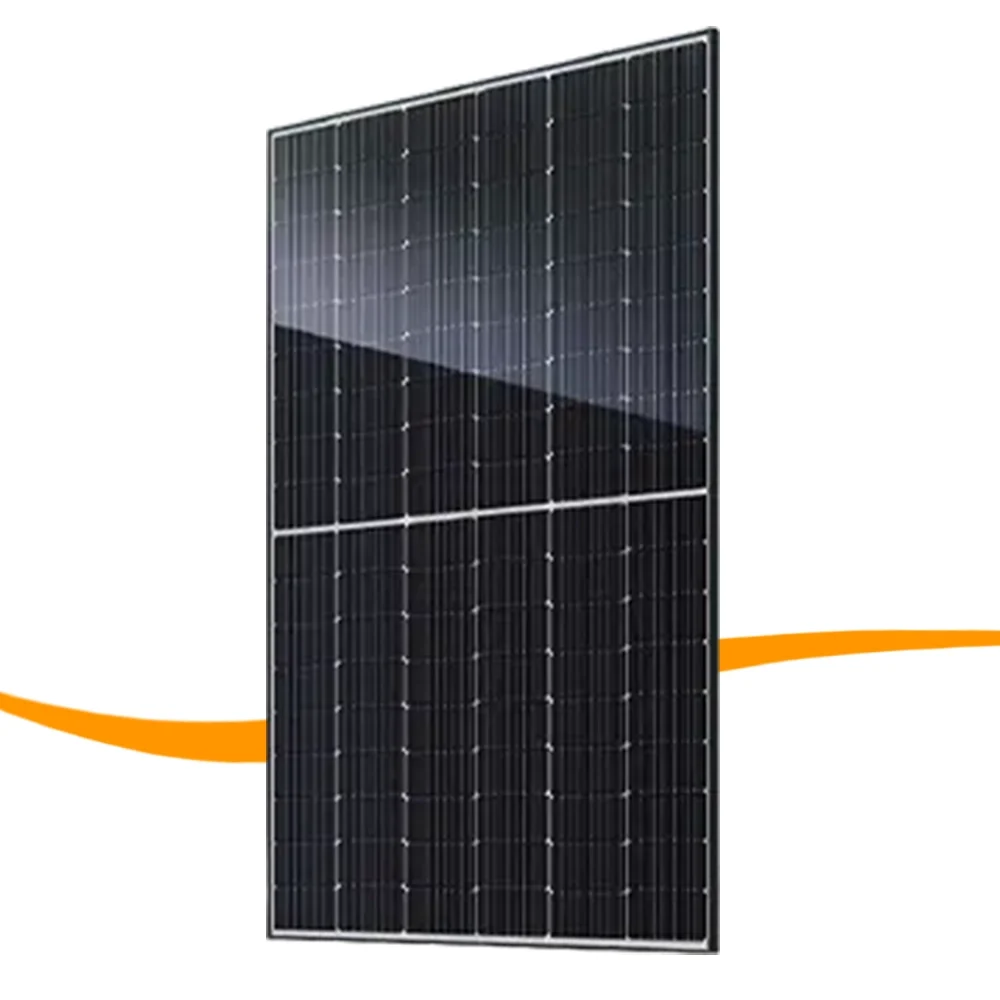

| 44 × | JA Solar JAM54D40-470/LR 470 Wp BFR glass-glass |
| 1 × | Kostal PLENTICORE L G3 |
| 1 × | KOSTAL DC surge protection module type 2 for PLENTICORE G3 |
| 5 × | KOSTAL PLENTICOIN card – power upgrade and battery activation |
| 1 × | Kostal Smart Energy Meter G2 |
| 1 × | BYD Battery-Box HVB 14.8 |

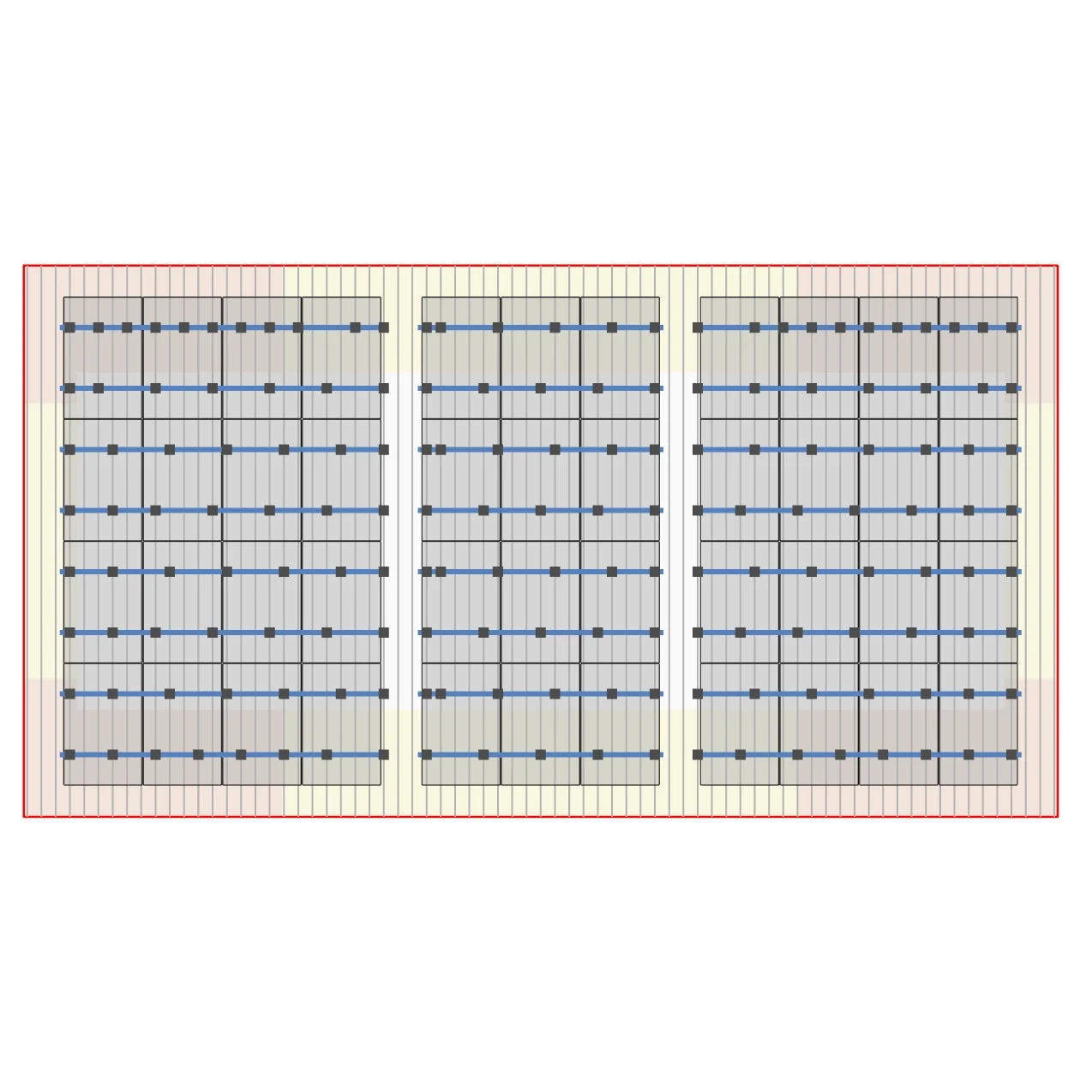

| 1 × | K2 Systems BasicRail mounting system for trapezoidal metal sheet (long rails) |
| 1 × | HELUKABEL SOLARFLEX®-X H1Z2Z2-K 6 mm² black 100m |
| 1 × | HELUKABEL SOLARFLEX®-X H1Z2Z2-K 6 mm² red 100m |
| 6 × | Stäubli PV-KBT4-EVO READY female connector (crimp-free assembly) |
| 6 × | Stäubli PV-KST4-EVO READY male connector (crimp-free assembly) |
| 2 × | Stäubli branch socket MC4-Evo 2 AZB4-EVO2-UR |
| 2 × | Stäubli branch plug MC4-Evo 2 – AZS4-EVO2-UR |
The installation site, component configuration, delivery and local commissioning requirements are reviewed before an order is prepared.
