PV system package with the modules and electrical components listed below. The bill of materials defines the included hardware; project layout, installation and commissioning are agreed separately.
System specification
| Package reference | 2560398 |
|---|---|
| Listed PV array rating | 20.370 kWp |
| Nominal size class | 20 kWp |
| PV modules | LONGi Solar |
| Battery storage | Pylontech |
| Inverter | Kostal |

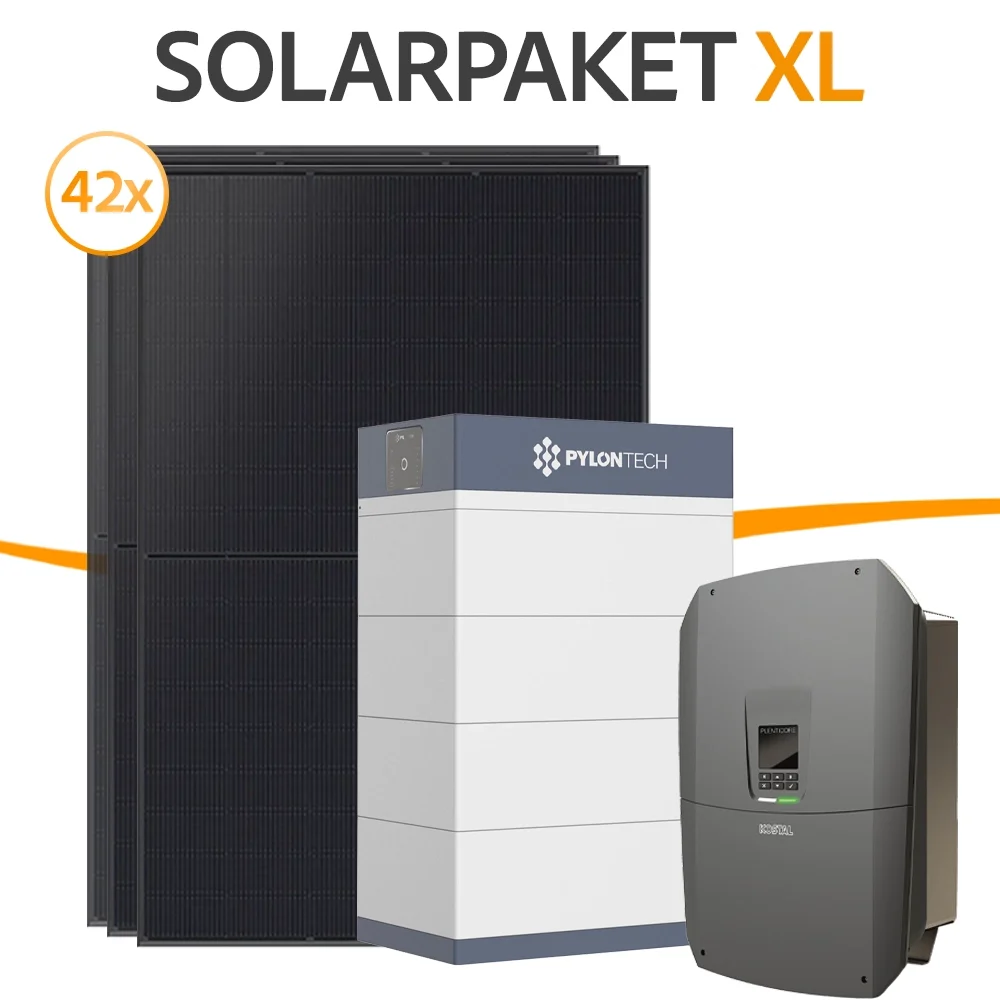

Included components
| Quantity | Component |
|---|---|
| 42 × | LONGi ECOLIFE X10 LR7-54HVBB-485M – 485 Wp (DG,FB) |
| 1 × | Kostal PLENTICORE L G3 |
| 1 × | KOSTAL DC surge protection module type 2 for PLENTICORE G3 + MP G3 |
| 5 × | KOSTAL PLENTICOIN card DE (3x battery-input activation & 2x power upgrade) |
| 1 × | Kostal Smart Energy Meter G2 |

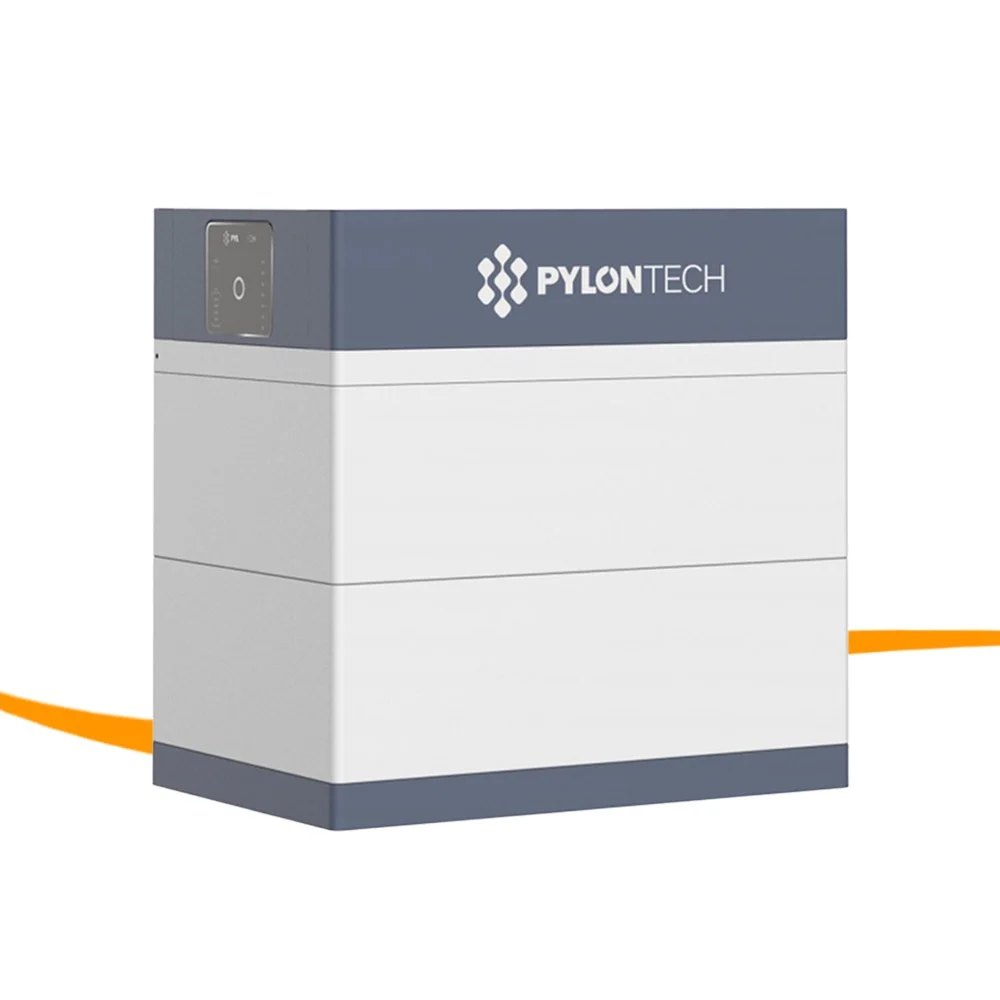

| 1 × | Pylontech Force H3 HV System 19.48 kWh |
| 100 m | HELUKABEL SOLARFLEX-X PV1-F 1x6mm² black |
| 100 m | HELUKABEL SOLARFLEX-X PV1-F 1x6mm² red |
| 8 × | Stäubli PV-KBT4-EVO READY female connector (crimp-free assembly) |
| 8 × | Stäubli PV-KST4-EVO READY male connector (crimp-free assembly) |
| 3 × | Stäubli branch socket MC4-Evo 2 AZB4-EVO2-UR |
| 3 × | Stäubli branch plug MC4-Evo 2 – AZS4-EVO2-UR |
The installation site, component configuration, delivery and local commissioning requirements are reviewed before an order is prepared.
